GUHEMA Super-HSS
DMo 5 / 1.3343 - M2 BSD

The fast path to our Article No.
Grade + Code Number (dimension) + TPI
Example: BSD + 2301 + L = BSD2301L

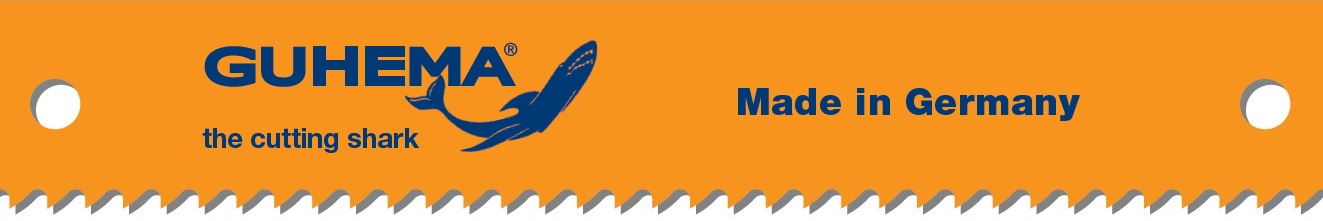

blade-image
TPI
Normal Teeth
Positive Teeth Variable Positive Teeth
Dimensions Indicator 2 3 4 6 8 10 14 18 22 2/3 3/4 4/6 6/8 8/10 Ø
in mm: B x S L ...C ...E ...G ...H ...I ...J ...L ...N ...O ...T ...U ...V ...W ...Ü in mm
20 x 1.25 300 ...2301... 6,0
25 x 1.25 300 ...2302... 8,5
25 x 1.25 350 ...2352... 8,5
25 x 1.25 400 ...2402... 8,5
25 x 1.5 300 ...3302... 8,5
25 x 1.5 350 ...3352... 8,5
25 x 1.5 400 ...3402... 8,5
30 x 1.5 350 ...3354... 8,5
30 x 1.5 400 ...3404... 8,5
30 x 1.5 450 ...3454... 8,5
30 x 2.0 350 ...4354... 8,5
30 x 2.0 400 ...4404... 8,5
30 x 2.0 450 ...4454... 8,5
35 x 2.0 350 ...4356... 10,5
35 x 2.0 400 ...4406... 10,5
35 x 2.0 450 ...4456... 10,5
35 x 2.0 475 ...4476... 10,5
40 x 2.0 400 ...4409... 10,5
40 x 2.0 450 ...4459... 10.5
40 x 2.0 500 ...4509... 10.5
40 x 2.0 550 ...4559... 10,5
45 x 2.0 450 ...4451... 12,5
45 x 2.0 500 ...4501... 12,5
45 x 2.0 550 ...4551... 12.5
45 x 2.5 550 ...5551... 12,5
45 x 2.5 575 ...5571... 12,5
50 x 2.5 500 ...5501... 12,5
50 x 2.5 500 ...5504... 12,5
50 x 2.5 550 ...5554... 12,5
50 x 2.5 575 ...5574... 12,5
50 x 2.5 600 ...5604... 12.5
50 x 2.5 650 ...5654... 12,5
50 x 2.5 700 ...5704... 12,5
60 x 2.5 625 ...5628... 12,5
60 x 3.0 650 ...6658... 12,5
60 x 3.0 700 ...6708... 12,5
60 x 3.0 750 ...6758... 12,5
70 x 3.0 800 ...6801... 17,0
110 x 3.0 950 ...6954... 18,5

= deliverable toothing
