Wir produzieren für Sie Maschinensägeblätter für alle Maschinensägetypen auf dem Markt. Unser Programm umfasst sowohl die Standardvarianten, als auch die Kasto-Aufnahme und Sägeblätter aus Bi-Metall. Getreu dem Motto:
Wir liefern Ihnen das Maschinensägeblatt, das bei Ihnen zum optimalen Sägeergebnis führt!

Our recommendations for a long service life

When using GUHEMA power hacksaw blades, we recommend only a few, but very important rules concerning the workpiece and sawblade in order to achieve optimal cutting results:

  • Never start sawing on a corner.
  • Always saw with a running cooling system.
  • Firmly clamp the workpiece so that it sits tightly and cannot be twisted.
  • A new power hacksaw blade has to be run in. Reduce the cutting pressure by about 50% during the run-in period.
  • Remove any mineral residue that may be present on the workpiece.
  • Check the sawblade tension from time to time.
  • Change your metal sawblade early! Best indicator: significant increase of cutting time.
  • Maintain your metal sawblade in accordance with the manufacturer's instructions.

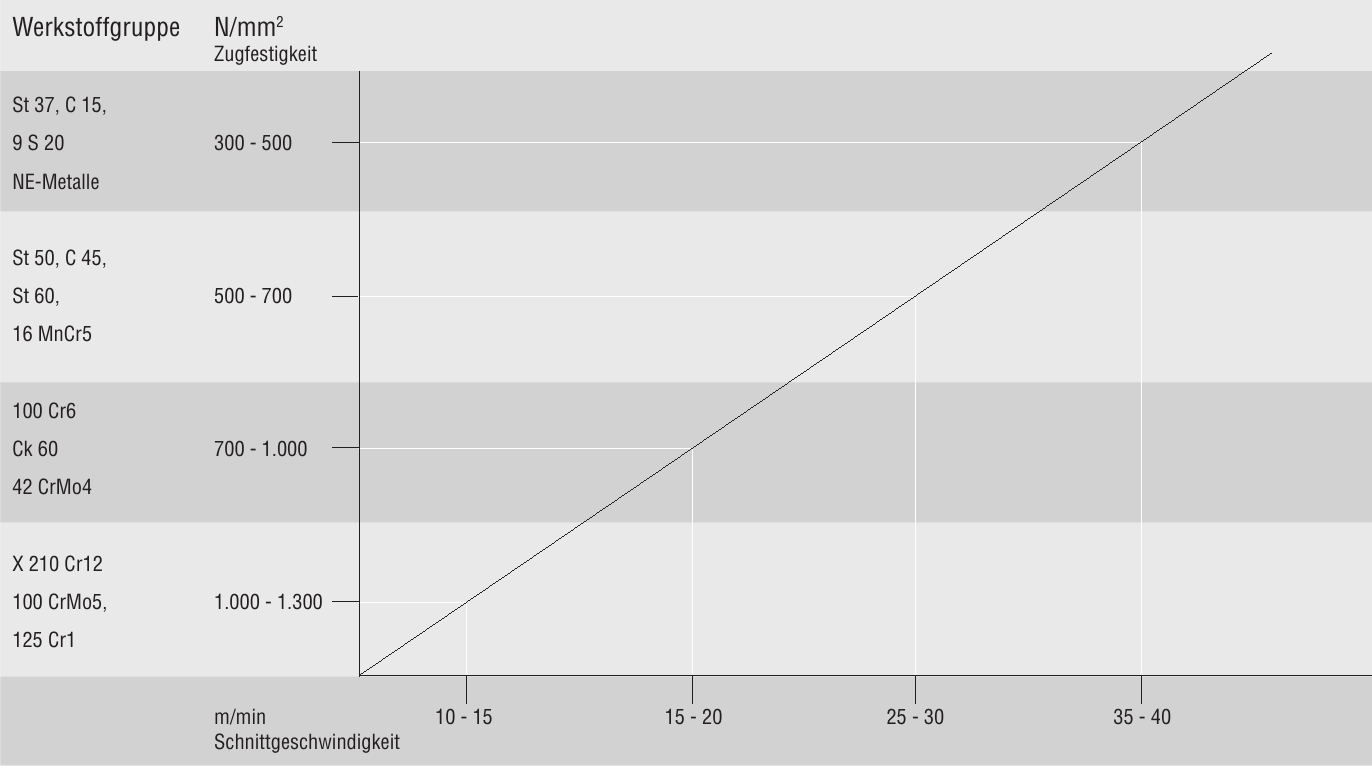

  • Adjust the cutting pressure, the cutting speed and the tooth number to the workpiece. The following diagram as well as the table can serve orientation purposes.
  • When using "Positive Teeth" and "Future", start with approx. 50% of the conventional pressure. When the sawblade has entered the material with its full width, the pressure has to be continuously increased without a buzzing sound becoming audible.
Material Group

Cutting data

Cutting data recommendation for solid material in a normally annealed state for GUHEMA power hacksaw blades based on a stroke length of 200 mm.

Reduce cutting pressure for pipes and profiles depending on the wall thickness.

Material TPI for material dimensions   Cutting speed Blade /
Designation up to   above Cutting pressure depending on material strength Grade Tooth form
  30 mm 50 mm 100 mm 200 mm 200 mm   Strokes / min m / min
unalloyed steels / structural steels
case hardening steels, such as
St37-C10-C15 10-8 8-6 6-4 4-3 2-1,5 low 60-100 24-40 Super HSS normal
St50-St60 10-8 8-6 6-4 4-3 2-1,5 to medium 60-100 24-40 Super HSS normal
Quenched and tempered steels, such as
C35-C45-C60 14-10 8-6 6-4 4-3 2 medium 55-80 22-32 Super HSS normal
CK45-40MN4 14-10 8-6 6-4 4-3 2 medium 55-80 22-32 Super HSS normal
34CrNiMo6-42CrMo4 14-10 8-6 6-4 4-3 2 medium 45-50 18-20 Super HSS normal
Alloyed carbon steels, such as
125Cr1-115CrV3-100CrMo5 14-10 8-6 6-4 4-3 2 medium 40-60 25-40 Super HSS normal
X210Cr12 14-10 8-6 6-4 4-3 2 medium 25-40 10-16 Super HSS normal
High-speed steels, such as
ABC III-DMo 5 10-8 8-6 6-4 4-3 2 medium 25-40 10-16 Super HSS normal
EMo 5 V 3-B18 14-10 8-6 6-4 4-3 2 & higher 25-35 10-14 Brillant normal
Stainless steels, such as
V2A-V4A 14-10 8-6 6-4 4-3 2 Special provision 25-37 10-15 Brillant positive
Special alloys, such as
Hastelloy-Inconel 10-8 8-6 6-4 4-3 2 Special provision 20-25 10-16 Brillant positive
Nimonic-Titanium 10-8 8-6 6-4 4-3 2 Special provision 10-13 4-5 Brillant positive
AMPCO 18-20 10-8 8-6 6-4 4-3 2 medium 45-50 18-20 Brillant normal
AMPCO 21-26 10-8 8-6 6-4 4-3 2 medium 40-45 16-18 Brillant normal
Cast steel 14-10 8-6 6-4 4-3 2 medium 50-70 20-28 Super HSS normal
Cast iron 14-10 8-6 6-4 4-3 2 medium 50-70 20-28 Super HSS normal
Special bronzes 10-8 8-6 6-4 4-3 2 medium-high 50-62 20-25 Brillant normal
Non-ferrous metals
Aluminium bronze brass 8 6 4 3 2 low 80-120 32-48 Super HSS normal

Application range for our GUHEMA Future metal hacksaw blades:

TPI Description
8/10 Material thicknesses of 8-30 mm
6/8 Material thicknesses of 20-50 mm
4/6 Material thicknesses of 50-100 mm
3/4 Material thicknesses of 70-150 mm
2/3 Material thicknesses over 150 mm

Our recommendation for coarse tooth patterns (toothing)

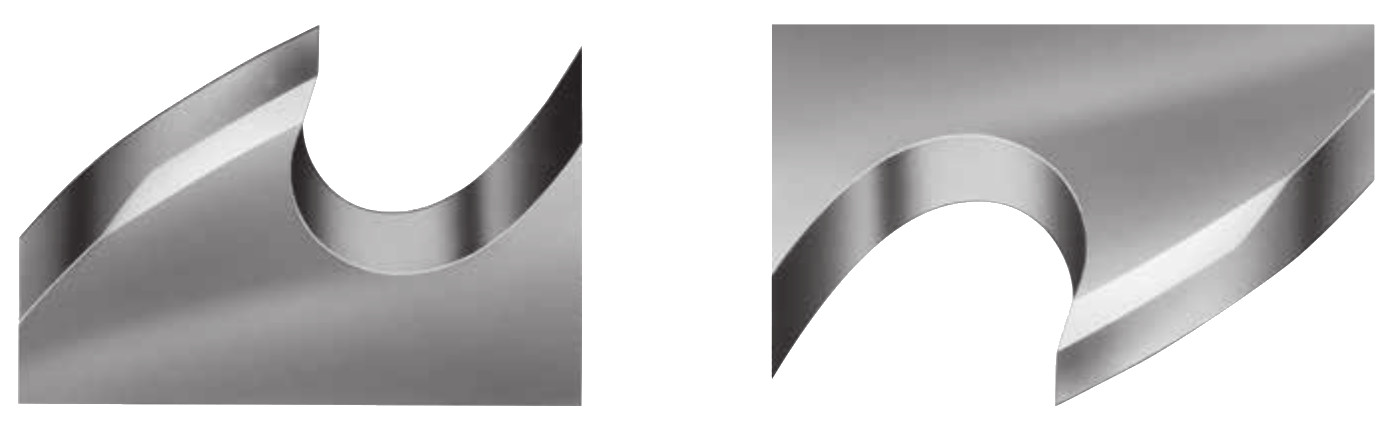

Alternating cross-grinding

Nutzen Sie Ihren Vorteil durch unseren seitlichen Fasenanschliff. Sie erhalten sauberste Schnittergebnisse. Vorzeitiges Ausbrechen der Zähne wird durch den Fasenanschliff verhindert und wegen der leichten Spanabrollung ergibt sich eine geringere Belastung von Blatt und Maschine → Metallsägeblatt und Maschine leben länger.

We will gladly produce the lateral ground-in rake up to 6 TPI for you upon request. Contact us!

Alternating cross-grinding

Are you having trouble sawing? – We've got the answers!

Teeth breaking?

Possible causes:

  • Too low number of teeth selected. At least three teeth should be engaged simultaneously; this also applies to tubes and profiles.
  • You started sawing on a corner.
  • Workpiece has been clamped incorrectly.

Blade breaking?

Possible causes:

  • The cutting channel has been pressed together and blocks the sawblade.
  • Incorrect blade tension.
  • Selected toothing is too coarse for the workpiece.
  • Cutting pressure too high.
  • Worn pilot bearings in the machine.

Premature dulling of the teeth?

Possible causes:

  • Selected toothing is too fine
  • Selected cutting speed too high for the workpiece.
  • Too high pressure (increased tooth load) or too low pressure (teeth grinding on the workpiece instead of lifting a chip).
  • Inadequate/misaligned sawblade cooling.
  • Incorrect sawblade grade selected.
  • No sawblade lifting during return travel.

Unwanted course of the sawblade?

Possible causes:

  • Incorrect blade tension.
  • Incorrect blade tension.
  • Cutting pressure too high.
  • Worn pilot bearings in the machine.

No matching answer?

Then talk to an expert! Contact our application consulting at +49 (0) 2191 88 67-20.
