No. 41 GUHEMA HM-Granulat

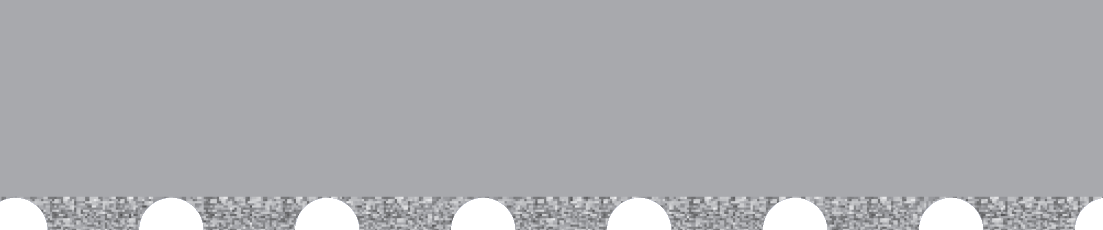

Chrome alloyed carrier strip with carbide grit coating
- For abrasive and composite materials
- Especially suitable for cables and wires, ceramics, fibreglass as well as tires
- Succeeds where saw teeth fail
- The intermittent bandsaw blade enables chip removal even with a large chip volume
The fast path to our Article No.
Qualität + Code Number (dimension) + TPI
z.B.: NC41 + 1006 + F = NC411006F
z.B.: NC41 + 1006 + F + Sawblade length = NC411006F03800
| TPI | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | Indicator | 1,4/2 | Fein | Standard | Grob | ||||||||||
| in mm: B x S | ...S | ...F | ...S | ...G | |||||||||||
| 10 x 0.6 | ...1006... | ||||||||||||||
| 13 x 0.6 | ...1306... | ||||||||||||||
| 20 x 0.8 | ...2008... | ||||||||||||||
| 25 x 0.9 | ...2509... | ||||||||||||||
| 32 x 1.1 | ...3211... | ||||||||||||||
| 38 x 1.1 | ...3811... | ||||||||||||||
= deliverable toothing
